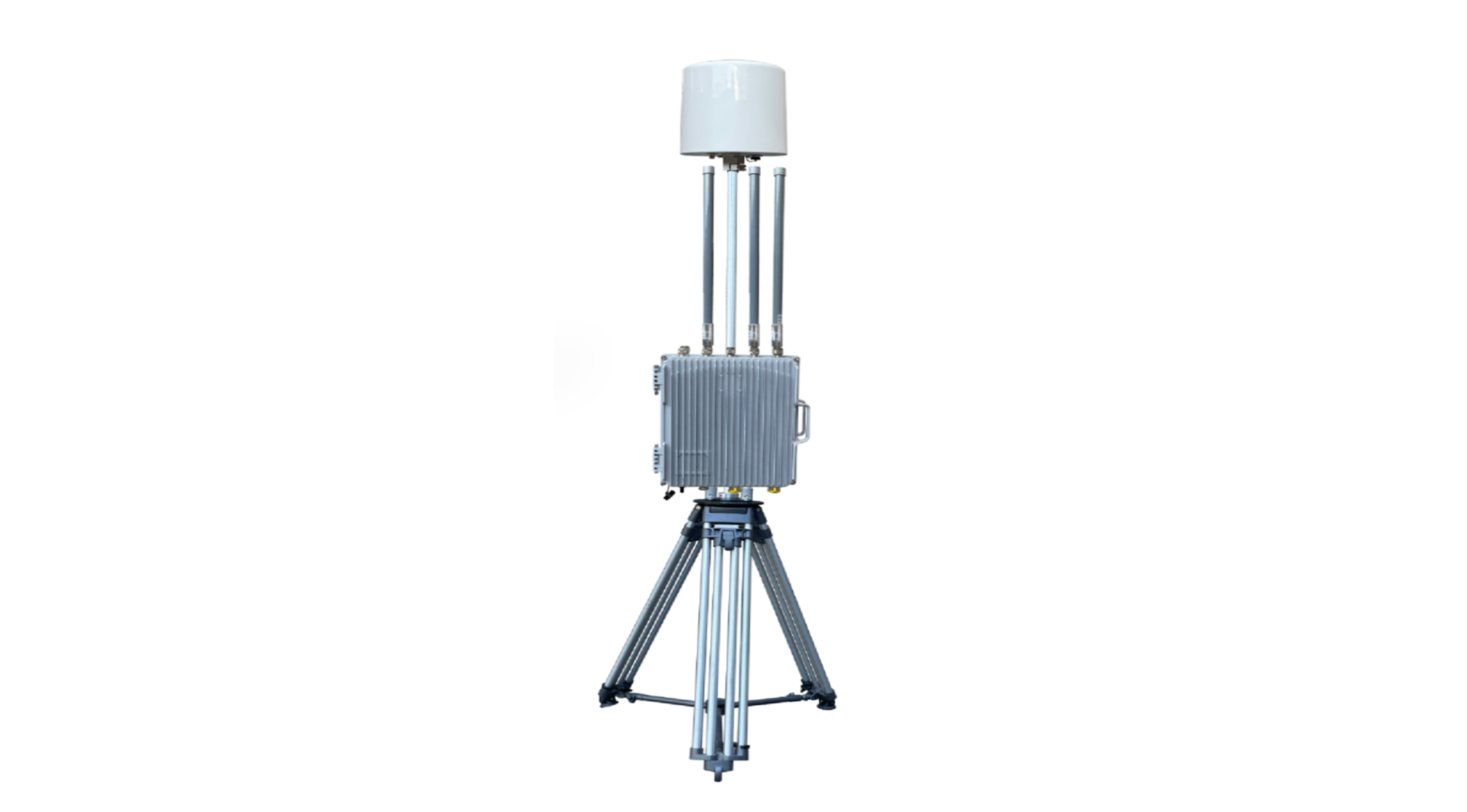

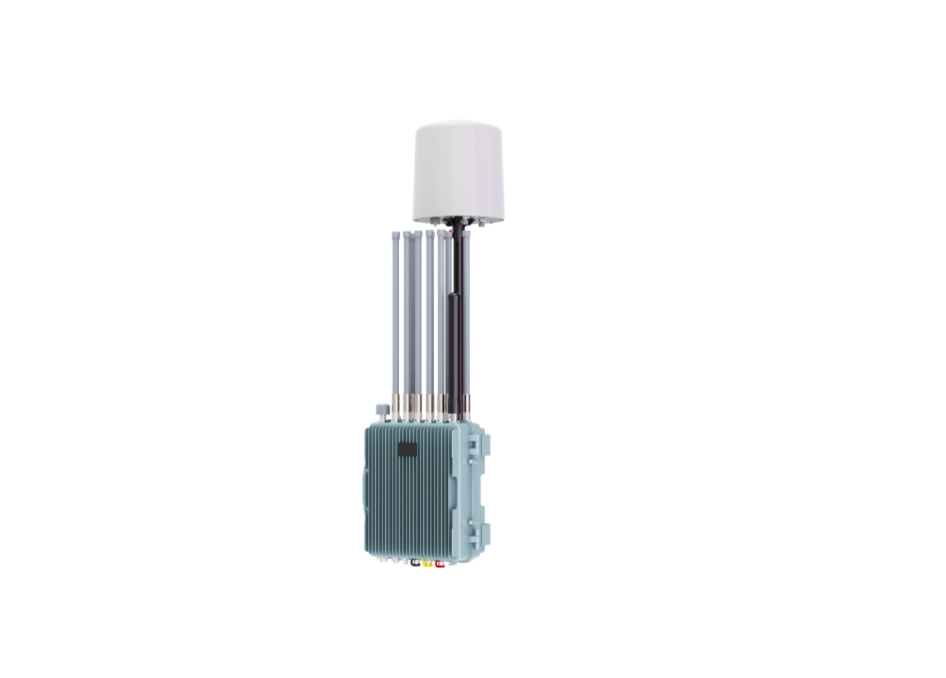

Key Features:

1. Advanced Positioning Capabilities:

• Displays precise latitude and longitude information.

2. Trajectory Tracking:

• Tracks flight paths of UAVs and movement trajectories of remote controllers (pilots) in distinct colors.

3. Multi-Target Detection and Positioning:

• Detects and locates over 10 types of UAVs.
• Identifies and recognizes over 20 drones at the same time.
• Detects 10+ types of UAVs and 10+ types of remote controls.

4. Intelligent Intrusion Detection:

• Automatically merges repeated detections of the same drone within a defined timeframe into a single record.
• Uses electronic fingerprint IDs to unify intrusion data across multiple detections.

5. Detection, Direction Finding, and Positioning:

• Detects and recognizes signals from DJI, Harbson, Zhendi, Wi-Fi drones and DIY drones with analog image transmission.
• Displays key information of drones
• Displays key information of remote control (pilot)

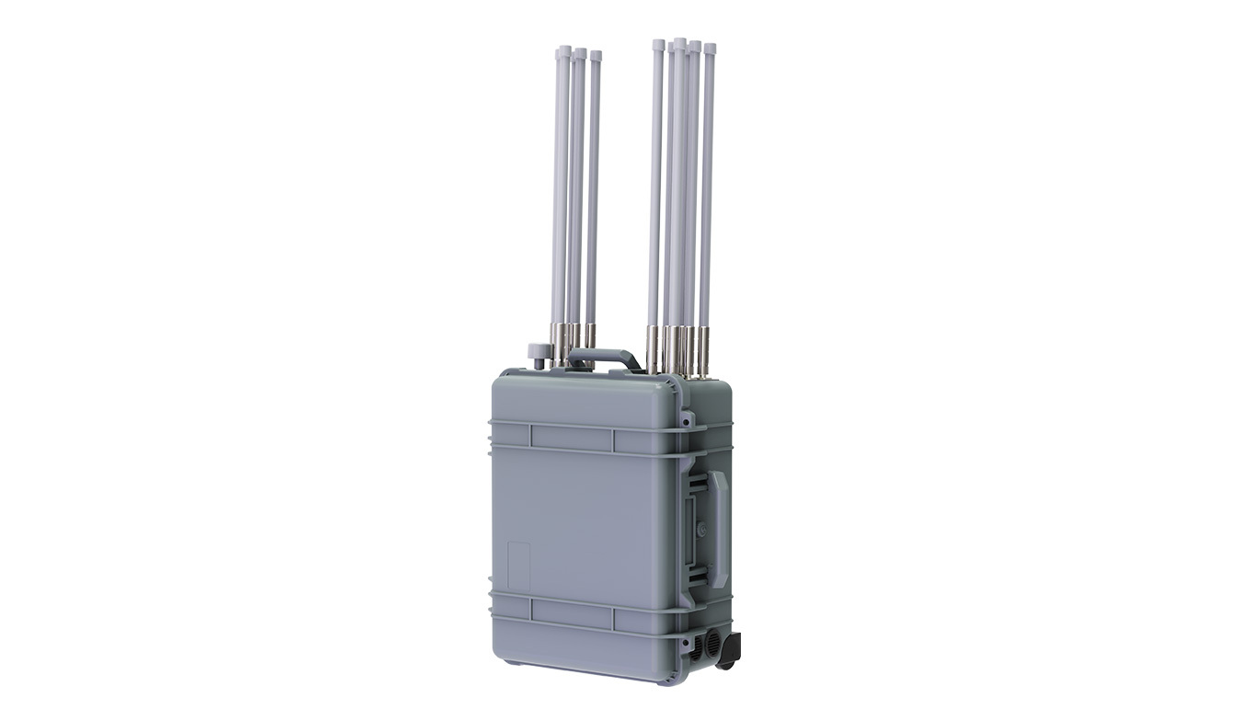

Technical Specifications:

1. Dimensions and Weight:

• Size: Length: 410 ± 2mm, Width: 330 ± 2mm, Height: 190 ± 2mm
• Weight: ≤ 14kg

2. Frequency Range: 25MHz – 6000MHz (customizable)

3. Main Frequency: 433MHz (customizable), 900MHz, 1.2GHz (customizable), 1.4GHz (customizable), 2.4GHz, 5.2GHz, 5.8GHz, Wi-Fi

4. Sensitivity: ≥ -95dBm (25kHz)

5. Detection Performance:

• Range: Up to 5KM
• Height Range: 0 – 1000m
• Directional Precision: ≤ 1.0° RMS
• Positioning Accuracy:
• Drones: ≤ 10m
• Pilots: ≤ 10m
• Detection Time: ≤ 2s
• Refresh Rate: ≤ 2s
• Success Rate: ≥ 99%

6. Power Supply and Efficiency:

• Power Voltage: AC 100V – 240V
• Power Consumption: 15W
• Supports 220V AC input and UPS backup for continuous operation

7. Operation Time: 7x24 hours continuous operation

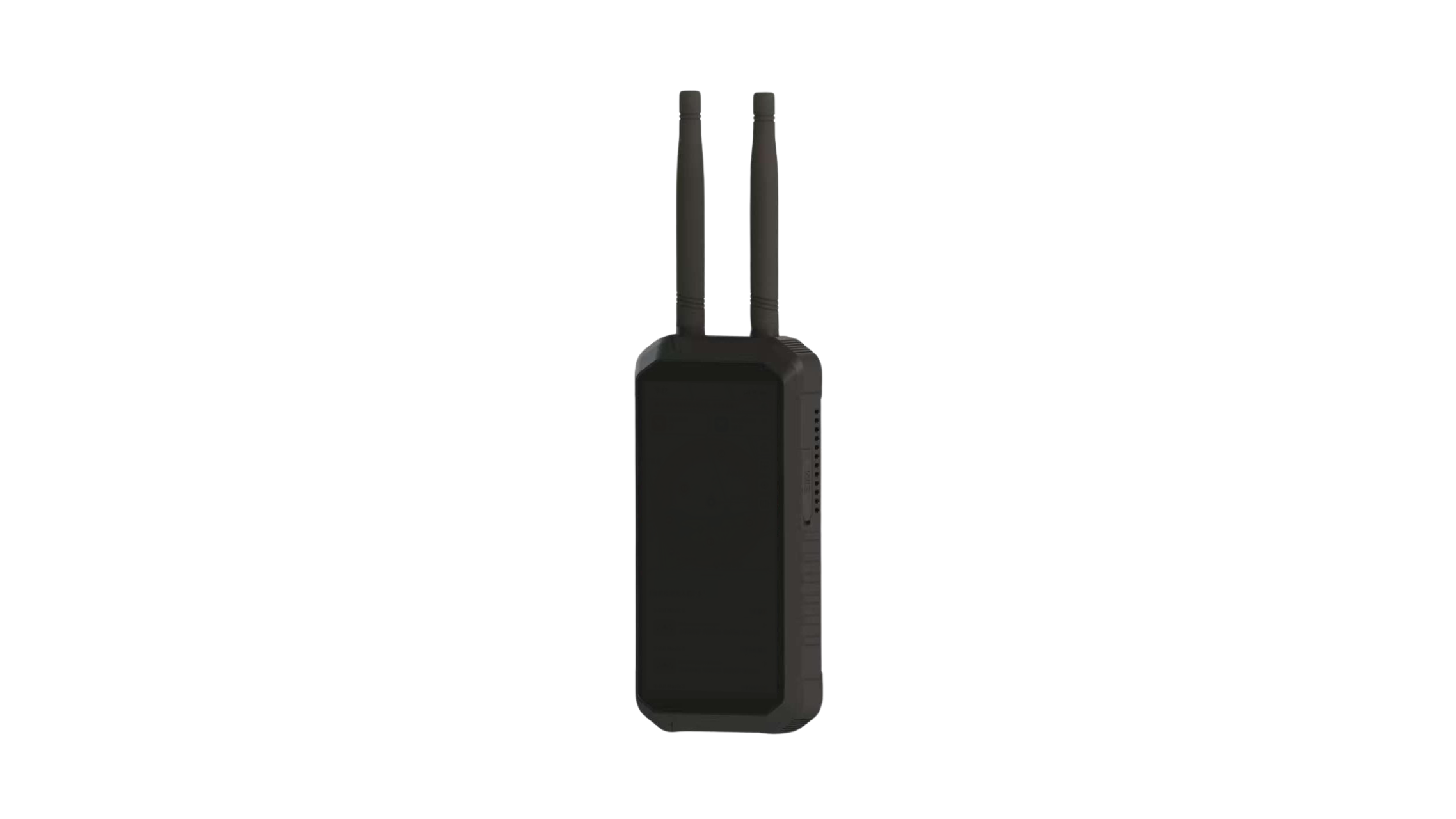

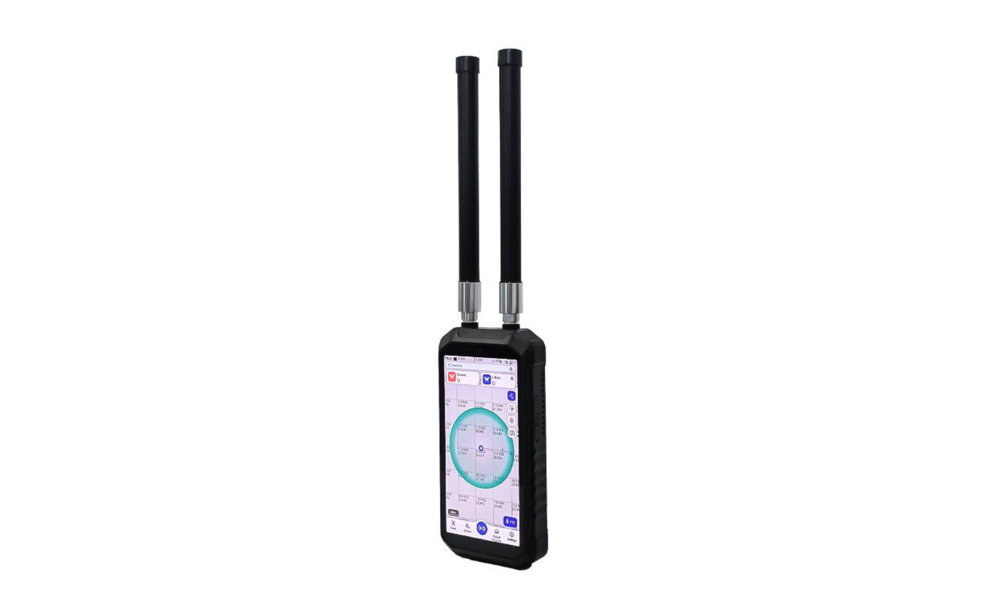

Key Features:

1. Passive Detection
Passively receives only, does not emit any electromagnetic signals, and has no impact on the surrounding environment.

2. Precise Identification
Precisely identify the SN, model, geo-location, speed, altitude, trajectory, and remote controller information of the drones in real time.

3. Trajectory Tracking
Multi-target trajectory tracking and pilot (remote control) tracking.

4. Position Navigation
Detect the pilot’s (remote control) position in real time, with one-click tracking of both the pilot and the drone.

5. Black and White List
One-click to mark the whitelist; there will be no alarm for white-listed drones.

6. Compact and Portable
Lightweight and small in size. Portable, shockproof, and drop-proof.

Technical Specifications:

1. Dimensions and Weight

• Size: 177 mm × 89 mm × 29.5 mm

• Weight: ≤580 g (±0.05 kg, without antenna); ≤46 g per antenna

• Power Supply: Built-in lithium battery


2. Frequency Range

• Detection Bands (Customizable):
  800 MHz & 900 MHz, 1.2 GHz, 2.4 GHz, 5.2 GHz & 5.8 GHz, Wi-Fi


3. Detection Performance

• Detection Distance: 0–3 km (varies by environment and drone type)

• Detection Quantity: ≥15 drones (simultaneous)

• Trajectories Tracking: ≥11 drones (simultaneous)

• Position Accuracy: ≤3 m (RMS)

• Response Time: ≤5 s


4. Power Specifications

• Battery Capacity: 12000 mAh

• Power Consumption: ≤15 W

• Continuous Runtime: ≥4 h (supports charging while using)

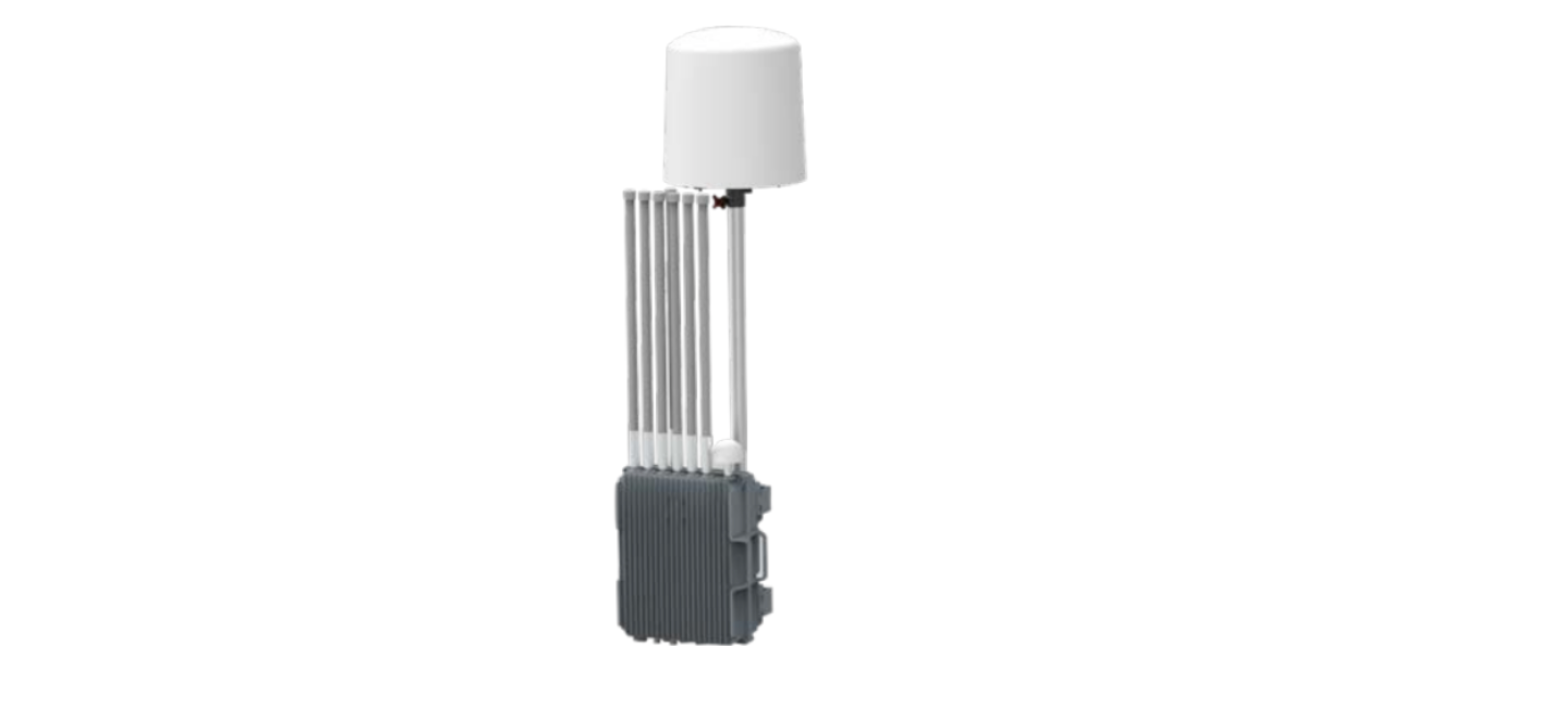

Key Features:

1. Advanced Positioning Capabilities:

• Displays precise latitude and longitude information.

2. Trajectory Tracking:

• Tracks flight paths of UAVs and movement trajectories of remote controllers (pilots) in distinct colors.

3. Multi-Target Detection and Positioning:

• Detects and locates over 10 types of UAVs.
• Identifies and recognizes over 10 drones at the same time.
• Detects 10+ types of UAVs and 10+ types of remote controls simultaneously.

4. Intelligent Intrusion Detection:

• Automatically merges repeated detections of the same drone within a defined timeframe into a single record.
• Uses electronic fingerprint IDs to unify intrusion data across multiple detections.

5. Detection, Direction Finding, and Positioning:

• Detects and recognizes signals from DJI, Harbson, Zhendi, Wi-Fi drone, DIY drone (analog image transmission), etc.
• Displays key information of drones
• Displays key information of remote control (pilot)

Technical Specifications:

1. Dimensions and Weight:

• Size: Length: 410±2mm, Width: 330±2mm, Height: 190±2mm
• Weight: ≤14kg

2. Frequency Range:

• 25MHz~6000MHz (CUSTOMIZABLE)

3. Main Frequency:

• 433MHz(CUSTOMIZABLE), 900MHz, 1.2GHz(CUSTOMIZABLE), 1.4GHz(CUSTOMIZABLE), 2.4GHz, 5.2GHz, 5.8GHz, WIFI

4. Sensitivity:

• ≥ -95dBm (25kHz)

5. Detection Performance:

• Range: 5KM
• Height Range: 0～1000m
• Directional Precision: ≤ 1.0° RMS
• Positioning Accuracy:
• Detection Time: ≤ 2s
• Refresh Rate: ≤ 2s
• Success Rate: ≥ 99%

6. Power Supply and Efficiency:

• Power Supply: Built-in lithium battery
• Power Consumption: Charge through a mobile power supply (power bank) or a power adapter connected to the mains.
• Working time: 7x24H

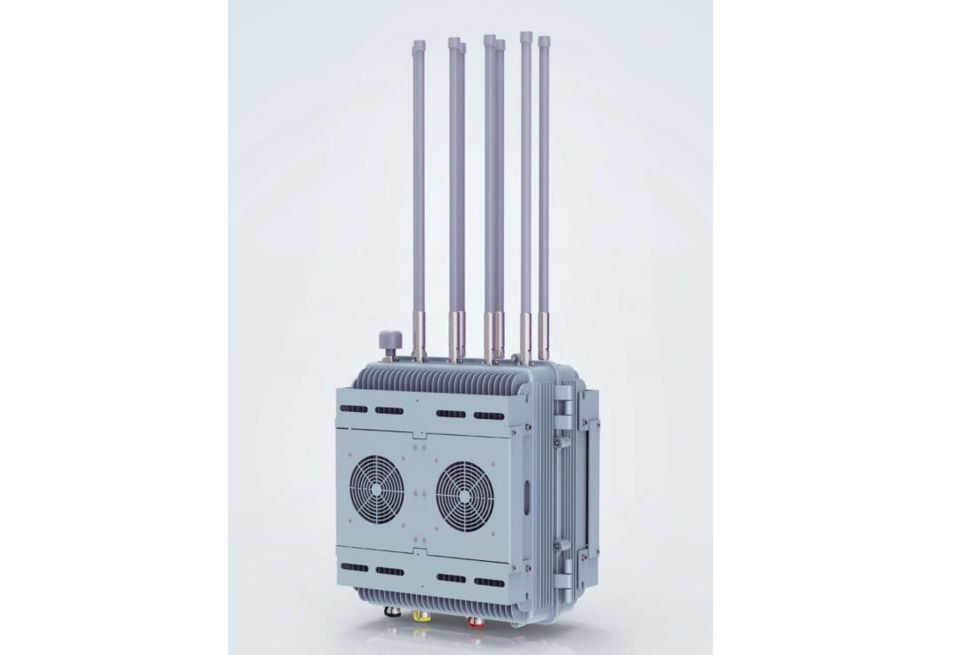

Key Features:

1. Advanced Positioning Capabilities:

• Displays precise latitude and longitude information.

2. Trajectory Tracking:

• Tracks flight paths of UAVs and movement trajectories of remote controllers (pilots) in distinct colors.

3. Multi-Target Detection and Positioning:

• Detects and locates over 10 types of UAVs.
• Identifies and recognizes over 35 drones at the same time.
• Detects 10+ types of UAVs and 10+ types of remote controls simultaneously.

4. Intelligent Intrusion Detection:

• Automatically merges repeated detections of the same drone within a defined timeframe into a single record.
• Uses electronic fingerprint IDs to unify intrusion data across multiple detections.

5. Detection, Direction Finding, and Positioning:

• Detects and recognizes signals from DJI, Wi-Fi drone, DIY drone (analog image transmission), etc.
• Displays key information of drones
• Displays key information of remote control (pilot)

Technical Specifications:

1. Dimensions and Weight:

• Size: Length: 410±2mm, Width: 330±2mm, Height: 190±2mm
• Weight: ≤12.8kg

2. Frequency Range:

• 25MHz~6000MHz

3. Main Frequency:

• 400MHz, 800MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz

4. Detection Performance:

• Range: 5KM
