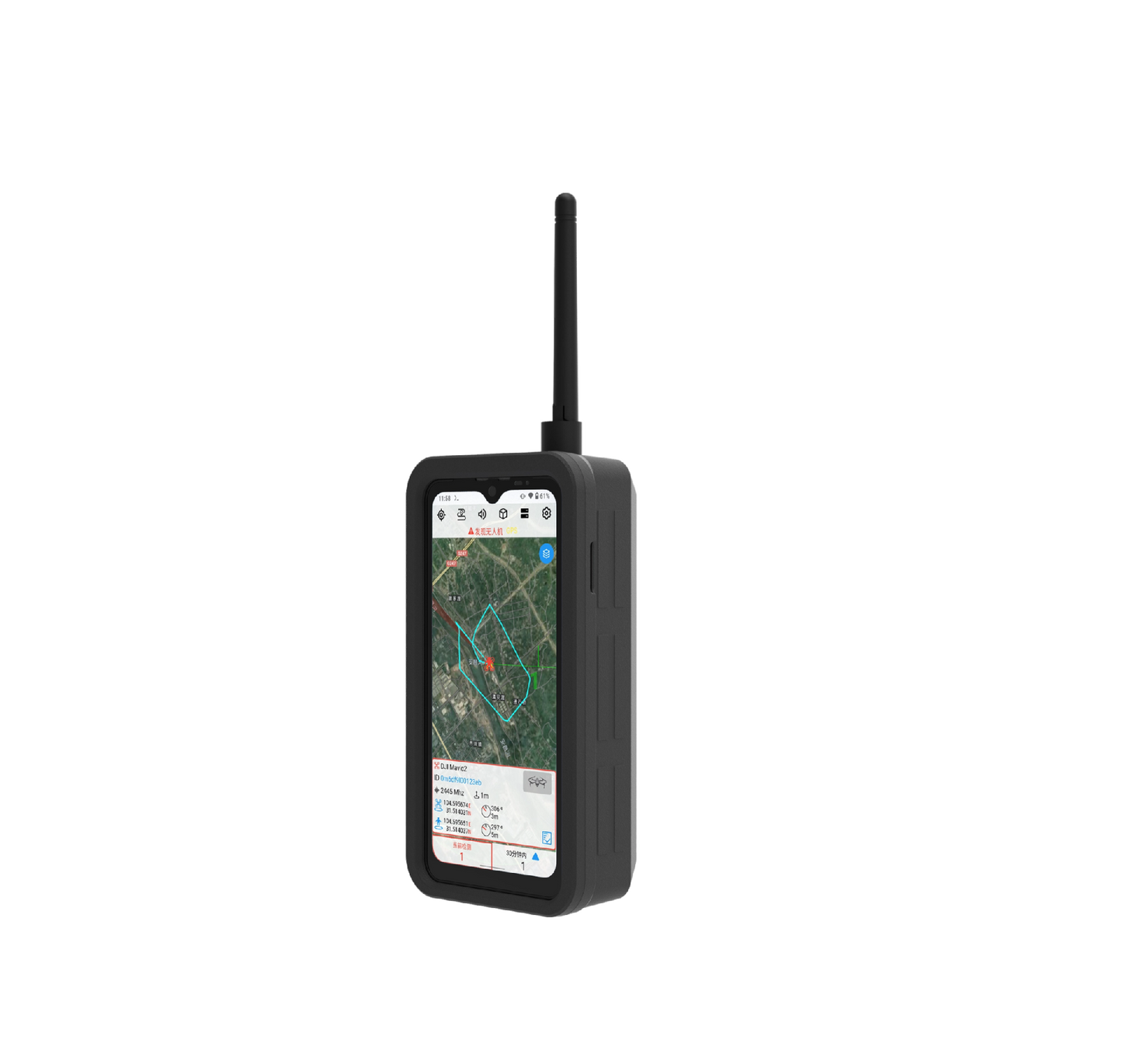

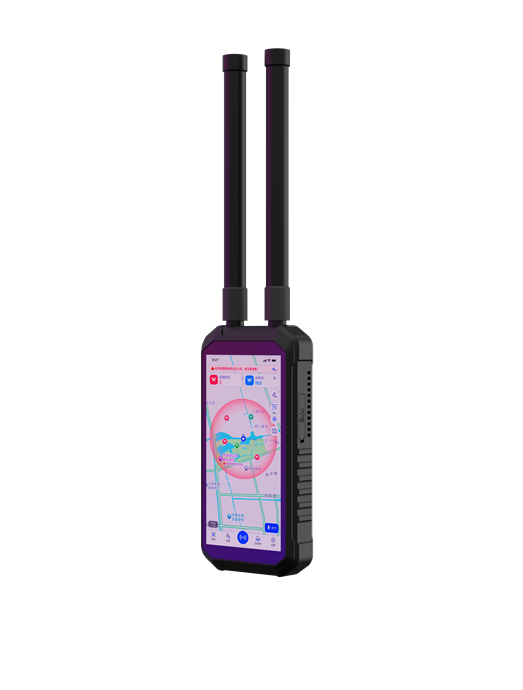

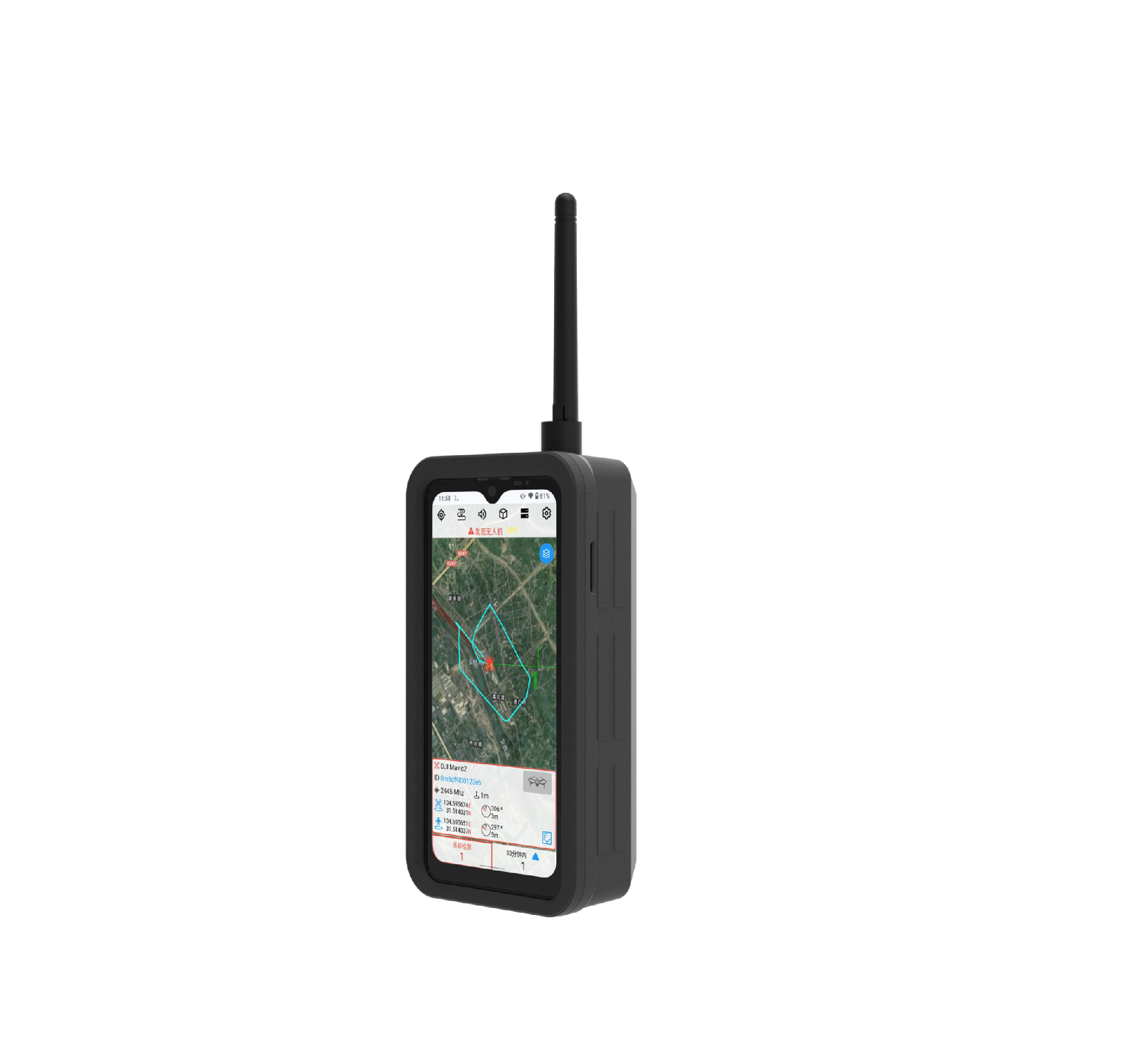

The AIM Handheld all-in-one detection and positioning system is an advanced anti-drone solution designed for rapid deployment and mobile compatibility. It offers early warning capabilities, precise positioning, and real-time trajectory tracking to enhance situational awareness.

Key Features:

1. Advanced Positioning Capabilities:

• Displays precise latitude and longitude information.

2. Trajectory Tracking:

• Tracks flight paths of UAVs and movement trajectories of remote controllers (pilots) in distinct colors.
• Supports simultaneous display of over 11 drone trajectories and 5 remote control trajectories.

3. Multi-Target Detection and Positioning:

• Detects and locates over 10 types of UAVs.
• Identifies and recognizes over 10 drones at the same time.
• Detects 10+ types of UAVs and 10+ types of remote controls simultaneously.

4. Intelligent Intrusion Detection:

• Automatically merges repeated detections of the same drone within a defined timeframe into a single record.
• Uses electronic fingerprint IDs to unify intrusion data across multiple detections.

5. Detection, Direction Finding, and Positioning:

• Detects and recognizes signals from DJI, Autel, Wi-Fi drones, etc.
• Displays key information of drones, including:
  • Working frequency band
  • Brand number
  • Electronic fingerprint ID (serial number)
  • Bearing
  • Distance
  • Latitude and longitude
  • Flight altitude
  • Flight tracks
• Displays key information of remote control (pilot), including:
  • Latitude and longitude
  • Distance
  • Bearings and other information
  • Movement tracks

Technical Specifications:

1. Dimensions and Weight:

• Size: Length: 165±2mm, Width: 85±2mm, Height: 50±2mm
• Weight: 550g (with antenna)
• Screen: 6 inch, capacitive touch screen and supports multi-touch

2. Frequency Range:

• 2.4GHz, 5.8GHz

3. Main Frequency:

• 2.4GHz, 5.8GHz

4. Sensitivity:

• ≥ -95dBm (25kHz)

5. Detection Performance:

• Range: 1.5km-2km
• Height Range: 0～1000m
• Directional Precision: ≤ 1.0° RMS
• Positioning Accuracy:
  • Drones: ≤ 10m
  • Pilots: ≤ 10m
• Detection Time: ≤ 2s
• Refresh Rate: ≤ 2s
• Success Rate: ≥ 99%

6. Power Supply and Efficiency:

• Power Supply: Built-in lithium battery
• Power Consumption: Charge through a mobile power supply (power bank) or a power adapter connected to the mains.

7. Model

• AIM-DD-H1
