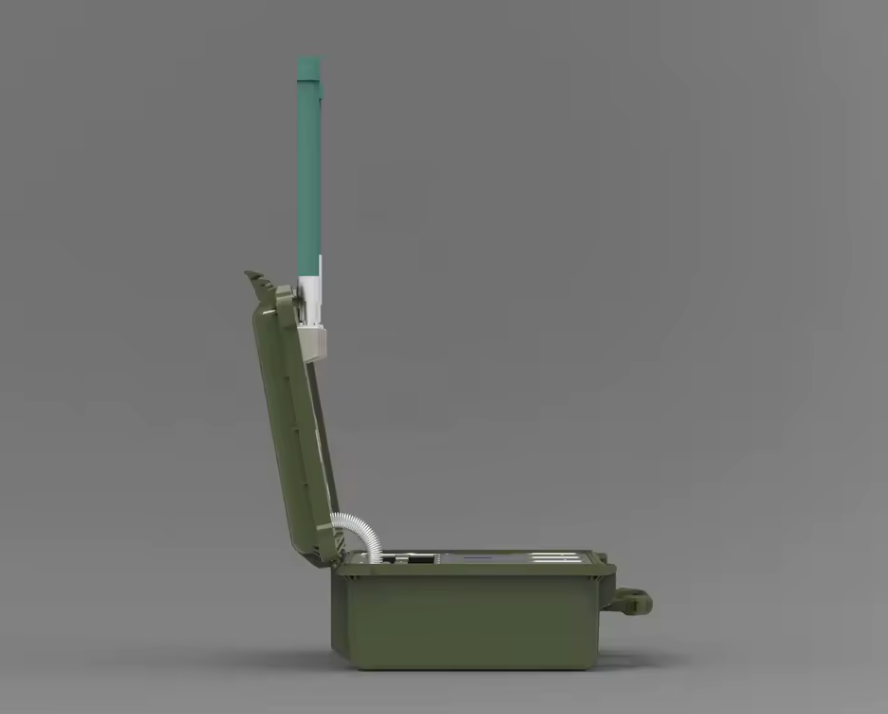

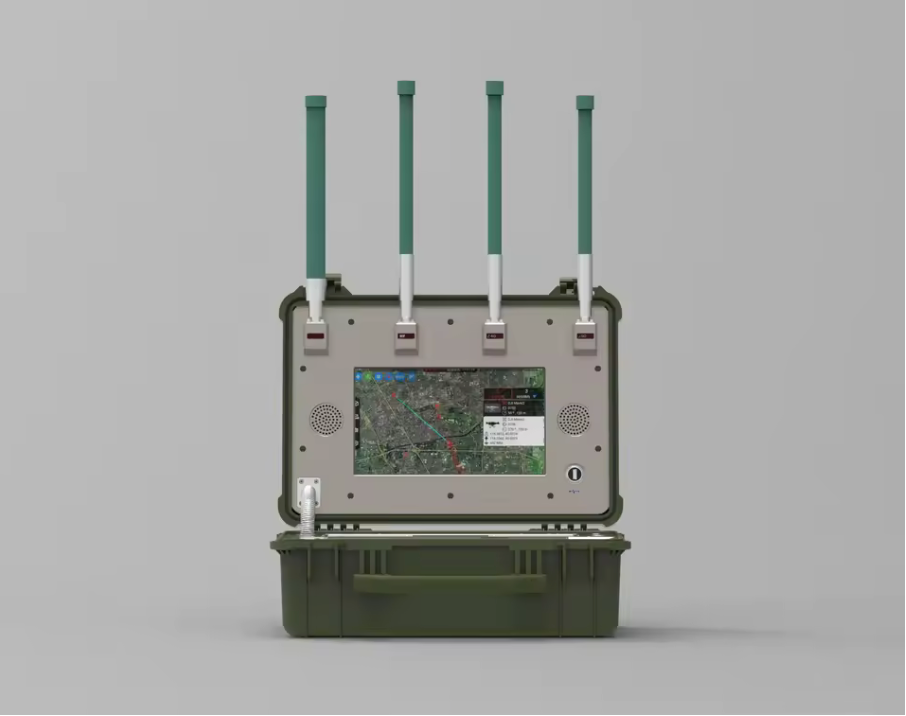

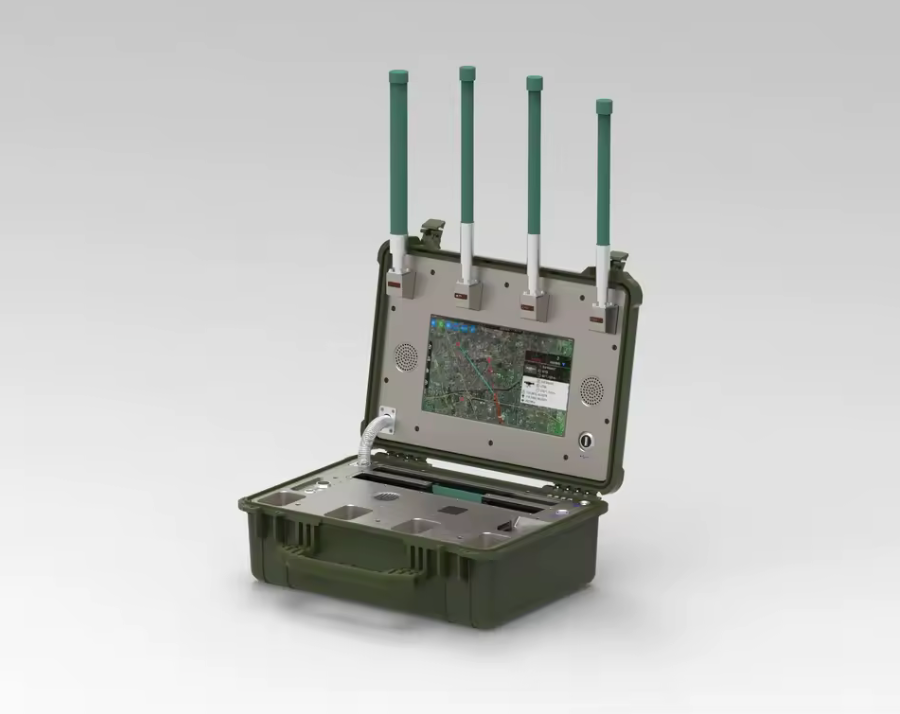

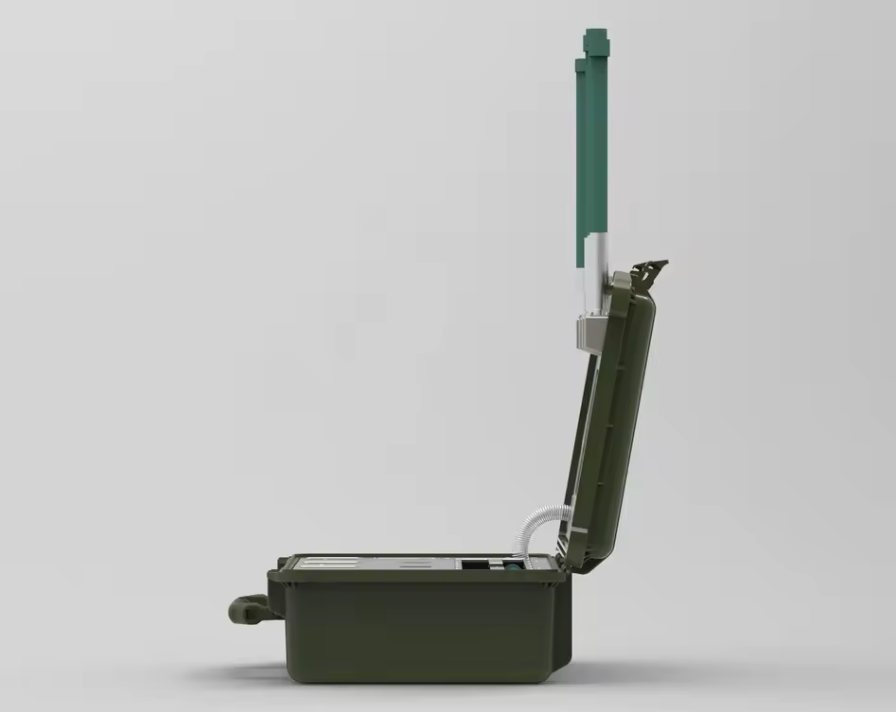

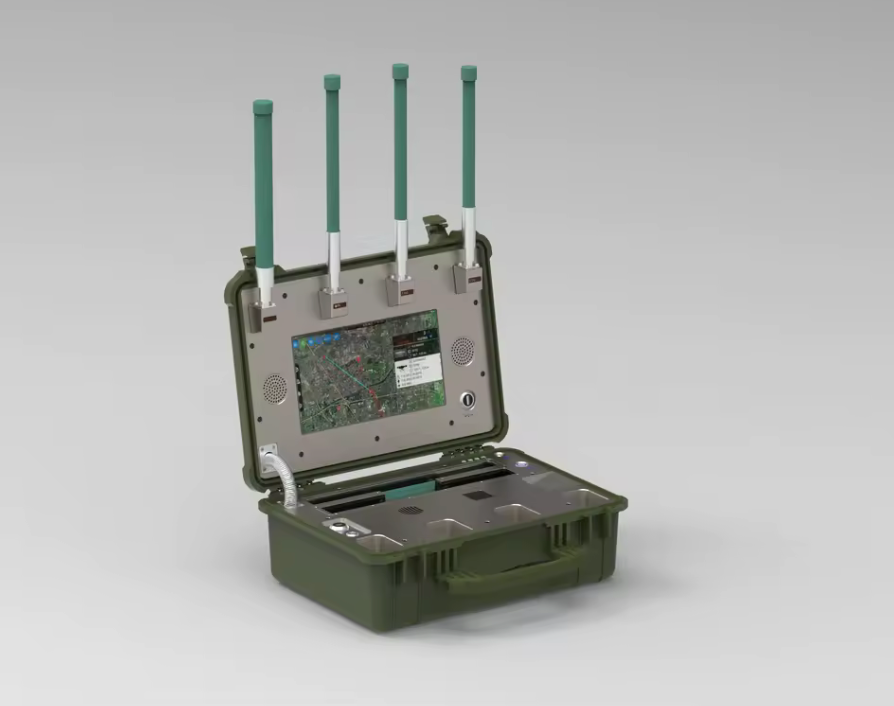

The AIM portable all-in-one detection and positioning system is an advanced anti-drone solution designed for rapid deployment and mobile compatibility. It offers early warning capabilities, precise positioning, and real-time trajectory tracking to enhance situational awareness.

Key Features:

1. Advanced Positioning Capabilities:

• Displays precise latitude and longitude information.

2. Trajectory Tracking:

• Tracks flight paths of UAVs and movement trajectories of remote controllers (pilots) in distinct colors.
• Supports simultaneous display of over 11 drone trajectories and 5 remote control trajectories.

3. Multi-Target Detection and Positioning:

• Detects and locates no fewer than 11 UAV targets simultaneously.
• Identifies and recognizes over 20 drones at the same time.
• Detects 10+ types of UAVs and 10+ types of remote controls.

4. Intelligent Intrusion Detection:

• Automatically merges repeated detections of the same drone within a defined timeframe into a single record.
• Uses electronic fingerprint IDs to unify intrusion data across multiple detections.

5. Detection, Direction Finding, and Positioning:

• Detects and recognizes signals from DJI, Harbson, Zhendi, Wi-Fi drones and DIY drones with analog image transmission.
• Displays key information of drones, including:
  • Working frequency band
  • Brand number
  • Electronic fingerprint ID (serial number)
  • Bearing
  • Distance
  • Latitude and longitude
  • Flight altitude
  • Flight tracks
• Displays key information of remote control (pilot), including:
  • latitude and longitude
  • distance
  • bearings and other information
  • movement tracks

Technical Specifications:

1. Dimensions and Weight:

• Size: Length: 410 ± 2mm, Width: 330 ± 2mm, Height: 190 ± 2mm
• Weight: ≤ 14kg

2. Frequency Range:

• 25MHz – 6000MHz (customizable)

3. Main Frequency:

• 433MHz (customizable)
• 900MHz
• 1.2GHz (customizable)
• 1.4GHz (customizable)
• 2.4GHz
• 5.2GHz
• 5.8GHz
• Wi-Fi

4. Sensitivity:

• ≥ -95dBm (25kHz)

5. Detection Performance:

• Range: Up to 5KM
• Height Range: 0 – 1000m
• Directional Precision: ≤ 1.0° RMS
• Positioning Accuracy:
• Drones: ≤ 10m
• Pilots: ≤ 10m
• Detection Time: ≤ 2s
• Refresh Rate: ≤ 2s
• Success Rate: ≥ 99%

6. Power Supply and Efficiency:

• Power Voltage: AC 100V – 240V
• Power Consumption: 15W
• Supports 220V AC input and UPS backup for continuous operation

7. Operation Time:

• 7x24 hours continuous operation

8. Model

• AIM-DD-P1
