AIM Robotics

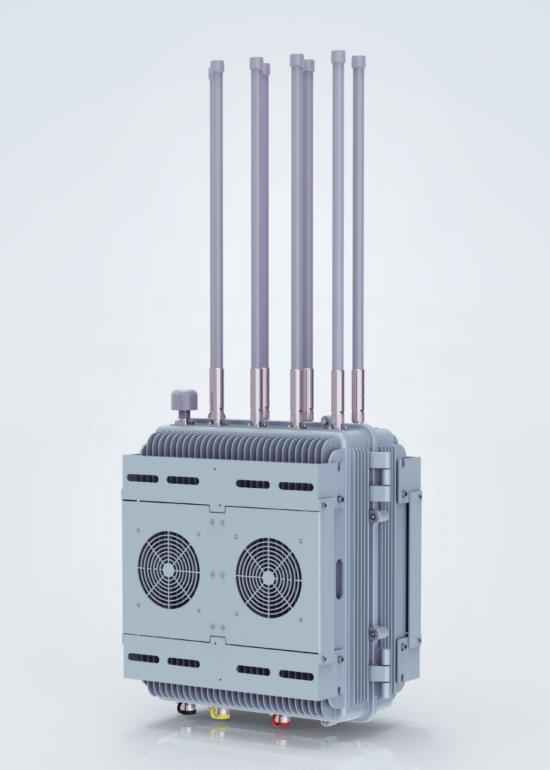

AIM Radio Directional & Jamming System
AIM Radio Directional & Jamming System
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Unit price
per
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Product Performance
|
Parameter |
Specification |
|
Detection Distance (with DF5 equipment) |
0–8 km (Differences exist due to different environments and drone types) |
|
Direction Finding Accuracy (with DF5 equipment) |
(RMS) 3° (hovering); 10° (moving) |
|
Detection Quantity (with DF5 equipment) |
>40 drones (simultaneous) |
|
Jamming Bands |
840 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 1.5 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz |
|
Jamming Distance |
0–3 km (Differences exist due to different environments and drone types) |
|
Jamming Quantity |
>30 drones (simultaneous) |
|
C/I |
≤10:1 (Differences exist due to different environments and drone types) |
|
Operating Temperature |
-40°C ~ +55°C |
|
IP Level |
IP66 |
Key Features
-
Precise Jamming
It can detect selective jamming of specific drones among multiple targets. -
Full Band Coverage
Covers the current remote controls, video/data link, and navigation band, with full frequency coverage. -
Integrated Defense
Combination of narrowband, frequency-hopping, low-power precision jamming, and high-power broadband jamming. -
Image Takeover
When the traverser’s mapping signal is detected and received, the software system interface can display the traverser’s viewpoint screen. -
Alarm Prompt
A customized alarm text or image can be sent to the FPV goggles or video receiver in jamming mode. -
Full-covered Drone Library
Covers more than 98% of drone models and DIY drones on the market. -
Multiple Applications
Widely used in all kinds of low-altitude security scenarios.
