AIM Robotics

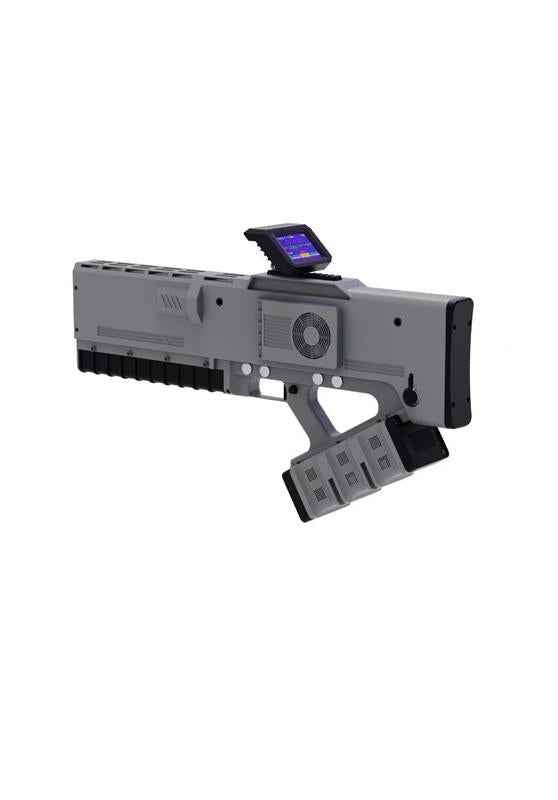

AIM Handheld Drone Detection & Jamming System
AIM Handheld Drone Detection & Jamming System
Out of stock
Couldn't load pickup availability
Product Specification
|
Category |
Parameter |
Specification |
|
Performance Indicator |
Detection Bands |
2.4 GHz, 5.8 GHz (Customization Available) |
|
Detection Distance |
0–3 km (Differences exist due to different environments and drone types) |
|
|
Direction Finding Accuracy |
≤10° (RMS) |
|
|
Positioning Accuracy |
≤10 m (RMS, available for drones that can be decoded) |
|
|
Jamming Distance |
0–1 km (Differences exist due to different environments and drone types) |
|
|
Jamming Bands |
900 MHz, 1.5 GHz, 2.4 GHz, 5.8 GHz |
|
|
Spoofing Mode |
Force Landing (Default) |
|
|
Spoofing Bands |
GPS-L1, GLONASS-L1, BDS-B1 |
|
|
Physical Indicator |
Screen |
3.5-inch touch screen |
|
Power Supply |
Lithium battery (replaceable); supports charging while in use |
|
|
Endurance |
≥8 h (monitor working conditions); ≥45 min (jamming working conditions) |
|
|
Size |
730 mm × 385 mm × 120 mm (±2 mm) |
|
|
Weight |
≤5.5 kg (battery included) |
Key Features
-
High Integration
Integrates detection and early warning, direction finding and positioning, jamming functions, and this single device has its own system and closed-loop control. -
Rapidly Detection
360° omnidirectional and sub-millisecond detection; the device will issue sound and light alarm immediately after detection. -
Precise Identification
Precisely identify drones of the same brand, model, and operation frequency. -
Direction Finding
Quickly determine the direction of drone invasion, and turn on jamming function to implement over-the-horizon directional defense. -
Full-Covered Library
Covers more than 98% of drones on the market, including DJI, Autel, JOUVA, Hubsan, 3DR, Parrot, Prox Dynamic, APEX, and DIY drones.
