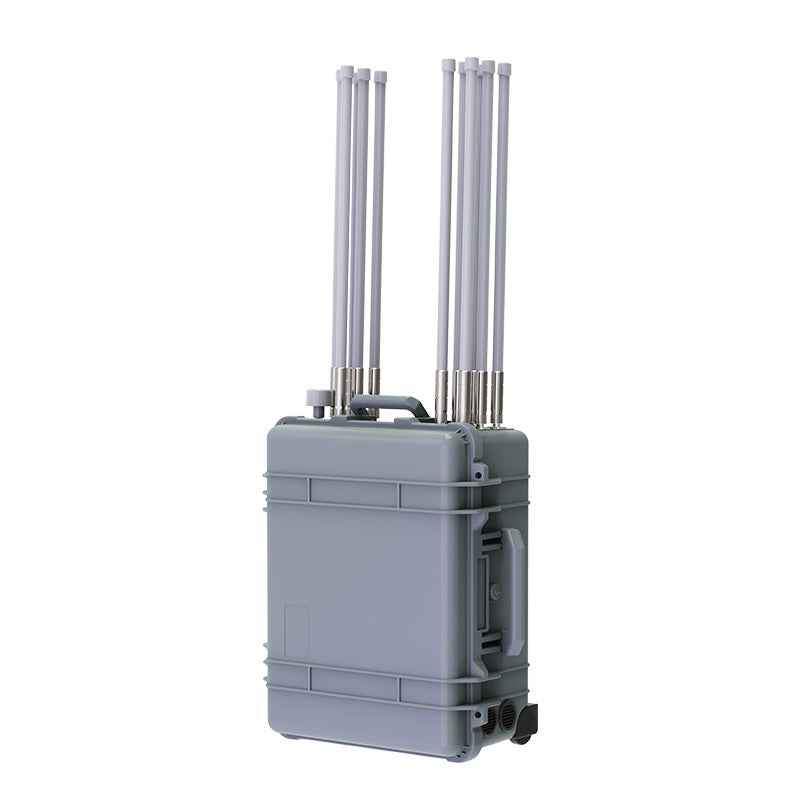

AIM Portable Drone Detection & Jamming System
AIM Portable Drone Detection & Jamming System
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Unit price
per
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Product Specifications
|
Category |
Parameter |
Specification |
|
Passive Detection |
Main Bands |
2.4 GHz, 5.8 GHz (0.4, 0.9, 1.4 GHz support to be customizable) |
|
Detection Radius |
0–3 km |
|
|
Detection Range |
360° Omnidirectional |
|
|
Direction Finding Accuracy |
(RMS) 3° (Hovering); 10° (Moving) |
|
|
Simultaneous Detection |
≥ 30 drones |
|
|
Wide-Bands Jamming |
Main Bands |
2.4 GHz, 5.8 GHz, 1.5 GHz (other bands support to be customizable) |
|
Jamming Radius |
0–2 km |
|
|
Precision Jamming |
Bands Supported |
2.4 GHz, 5.8 GHz |
|
Jamming Radius |
0–2 km |
|
|
Main Box |
Size |
560 mm × 460 mm × 265 mm |
|
Weight |
20 kg |
Key Features
-
Passive Detection
Passively receives only and does not emit any electromagnetic signals. -
Precise Identification
Accurately identify different drones of the same brand, model, and frequency band. -
Precise Jamming
Support to jam the selected drone of the same model, frequency band, and orientation. -
Black and White List
One-click to mark the black and white list, keeping the white-listed drones free from interference. -
Integrated Defense
Narrowband, frequency hopping, and low-power precision jamming combined with broadband high-power jamming. -
Full-Covered Drone Library
Covering more than 98% of drone models and DIY drones on the market. -
Mobile and Portable
With good mobility and portability, it can realize flexible and quick deployment, as well as dynamic and efficient prevention and control.
